PITR Monitoring

When PITR is running, WAL-G produces two things in the S3 bucket:

  • Cluster Backups (WAL-G), at the frequency you configured
  • WAL Segments, every minute

Monitoring PITR means checking both are actually being produced.

Checking the Cluster Backups

Success

If your backups run from the server's crontab, you must schedule a Task to refresh the Cluster Backups list — see Refreshing the list. Without it, an empty list means nothing.

Four places to look:

Notifications

Search your Teams or Slack notifications around the expected start and end times. You should find the start, end or error notification for the backup or list-refresh Task.

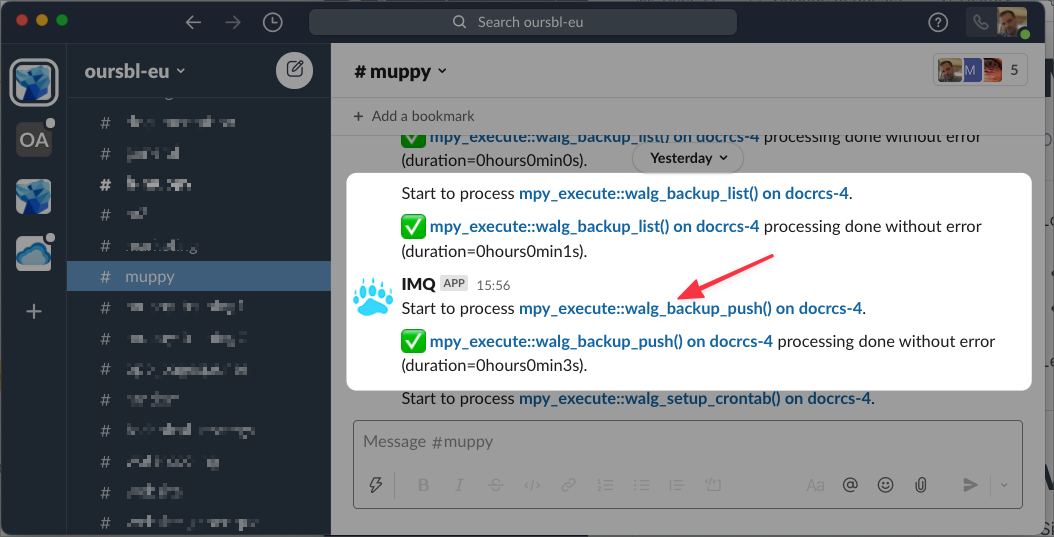

Backup notifications

Click the message name to open the IMQ message in Muppy.

IMQ message

The message form gives you its status and its logs.

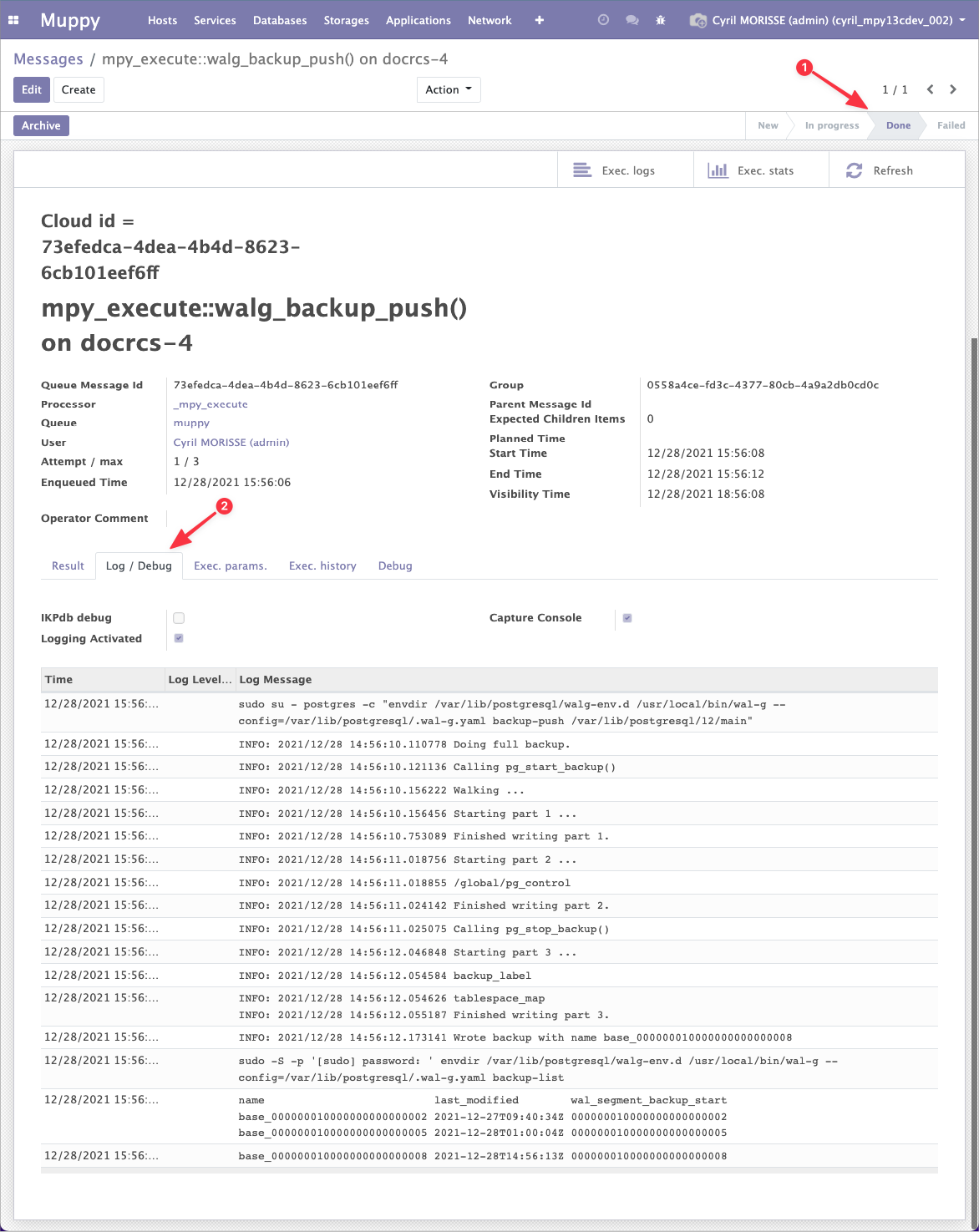

IMQ message for the walg_backup_push Task

Cluster Backup record

On success, Muppy creates a Cluster Backup (WAL-G) record. Find it in the list.

Three fields on it let you locate the actual files in S3:

  1. the S3 bucket used
  2. the WAL-G Backup Name of the cluster
  3. the name of this particular backup

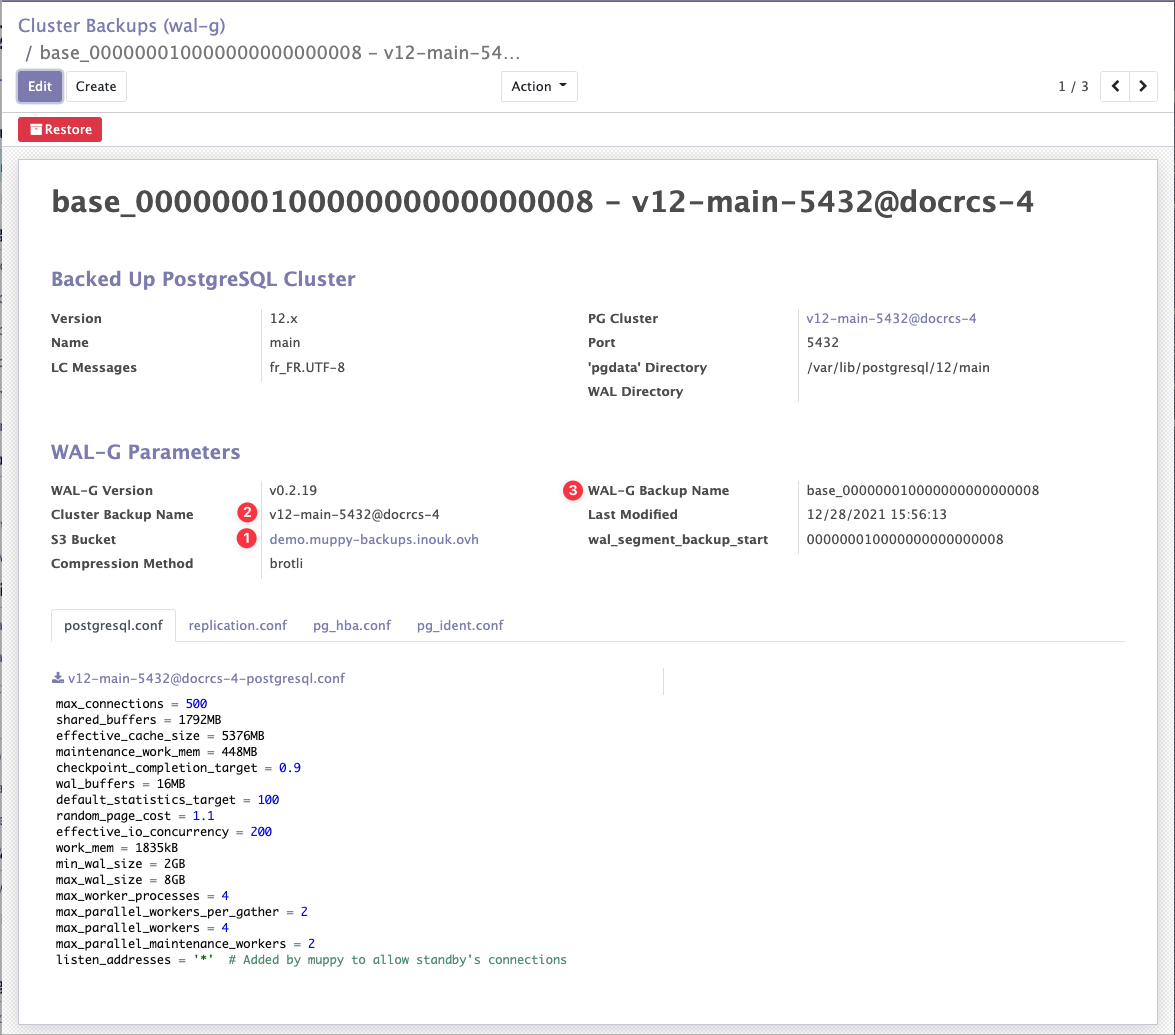

Cluster Backup (WAL-G) form

Files in S3

WAL-G writes into the bucket set in the WAL-G configuration. S3 Objects explains how to find them.

Checking the WAL Segments

The per-minute WAL files are not represented in Muppy. To verify them, check the PostgreSQL log and the S3 bucket.

PostgreSQL cluster log

  1. Open the Database Cluster form.
  2. Copy Log File from its Configuration tab.
  3. Open an SSH session on the Host — use the SSH (root) button, or the SSH command in the cluster header.
  4. Tail the log:
tail -n 50 -f {{ Log File value }}

For example:

tail -n 50 -f /var/log/postgresql/postgresql-12-main.log

You should see lines for WAL Segments being generated and shipped to S3, and lines for the cluster backups.

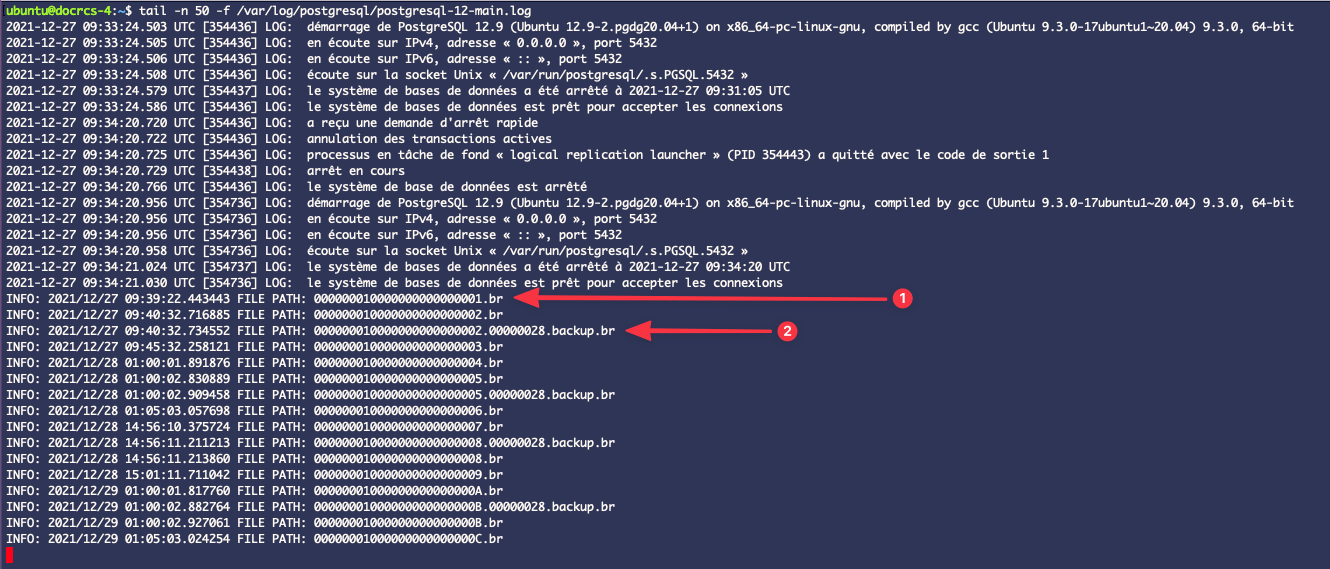

PostgreSQL log showing PITR activity

No WAL lines on an idle cluster

An active cluster produces a WAL line every minute. A quiet one produces none — which looks exactly like a broken setup. Force a change to tell them apart:

CREATE DATABASE force_wal_flush;

A WAL file should appear in the log within the minute.

WAL files in S3

Same bucket as above. See S3 Objects.
